Bentonite is a versatile mineral used in drilling fluids, foundry sand binders, iron ore pelletizing, and even cosmetics. But processing it efficiently has always been a challenge—especially when using traditional equipment like Raymond mills or ball mills .

Here’s why more bentonite producers are making the switch to vertical roller mills.

The Problem with Traditional Mills

Bentonite raw ore often comes with high moisture content (15–35%) and requires fine grinding—typically 200 mesh or finer. Raymond mills struggle with these conditions. They suffer from:

Low single-machine output

High wear and maintenance costs

Dust leakage and poor working conditions

Low automation levels

For large-scale producers, these limitations directly impact profitability.

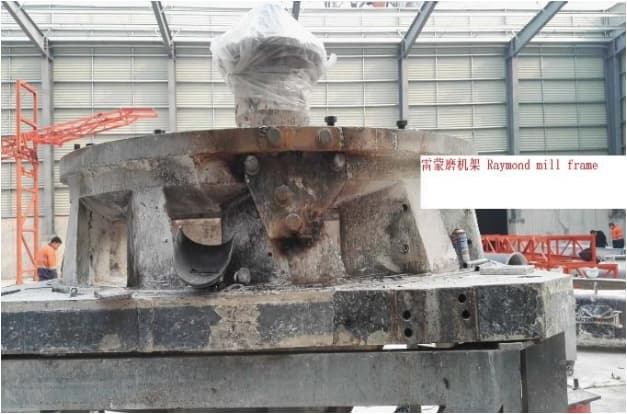

pic: Frame of Raymond Mill

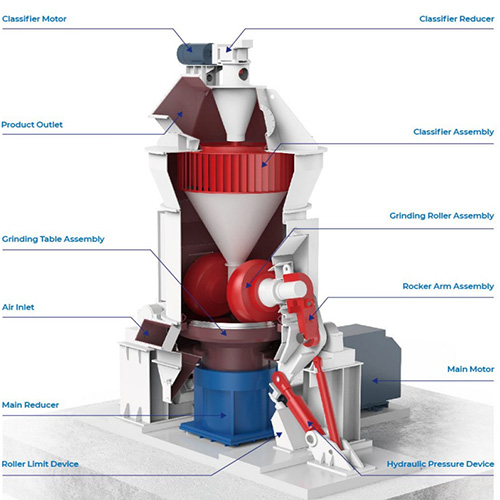

The HCHVM Vertical Roller Mill Advantage

Vertical roller mills address all these pain points.

Here's how:

1. Integrated Drying and Grinding

Bentonite's high moisture is no longer a bottleneck. VRMs introduce hot gas directly into the grinding chamber, simultaneously drying and grinding the material in one step. This eliminates the need for a separate pre-dryer—saving both equipment costs and floor space.

2. Higher Efficiency & Lower Power Expense

Adopting material bed extrusion grinding, HFHVM vertical roller mills are far more energy-saving than impact-type ball mills, delivering 30%–50% power reduction. Practical application data proves bentonite manufacturers can slash power expenditure by 3.3$ per ton with VRMs.

3. HFVRM Precise Fineness Control

Bentonite applications demand consistent particle size—whether it's 200 mesh for drilling mud or 1500 mesh for high-end coatings. Modern VRMs are equipped with dynamic classifiers that allow real-time fineness adjustment without stopping production. Output ranges typically span 100–2500 mesh depending on the model.

4. Lower Wear and Maintenance

The grinding bed itself provides a cushioning effect, reducing direct contact wear between rollers and the grinding table. Wear parts are made from high-chromium or composite alloys, delivering extended service life—2–5 years for non-metallic mineral applications.

5. Cleaner, Quieter Operation

HFVRM VRMs operate under negative pressure with pulse-jet dust collectors, keeping emissions below strict environmental standards. Noise levels are also significantly lower than traditional mills—roughly 15 dB quieter than Raymond mills.

Real-World Results

Data from operating bentonite VRM lines confirms the benefits:

One plant producing 325-mesh bentonite achieved daily output exceeding 300 tons, with monthly electricity savings of nearly USD 8000 .

A 200-mesh bentonite line with 98% passing rate achieved 35% lower energy consumption than a traditional Raymond mill setup.

Annual production capacity for a single VRM line can exceed 150,000 tons.

  •


For bentonite producers looking to scale up, reduce operating costs, and meet stricter environmental standards, vertical roller mills are no longer a luxury—they're a competitive necessity. The technology has matured, proven itself in real-world applications, and is increasingly the go-to choice for new and expanded bentonite processing lines.

Interested in upgrading your bentonite grinding line? Contact us for a customized solution and feasibility analysis.
